Difference between SIPs and timber frame? – When it comes to eco-friendly construction methods, there are two main types of materials that are used: SIPs and timber frames. Both have advantages, and it’s important to understand the difference between SIPs and timber frame construction.

As you might expect, a log cabin will be built from timber. ECO rooms for gardens take advantage of SIPs (structural insulated panels) which are an entirely different type of construction.

What are SIPs?

SIPs are made by sandwiching a layer of insulation between two structural layers. The insulation is often in the form of foam, and SIPs panels commonly have Oriented Strand Board (OSB) walls. This makes for a very strong and energy-efficient panel that can be used to build walls, floors, and roofs.

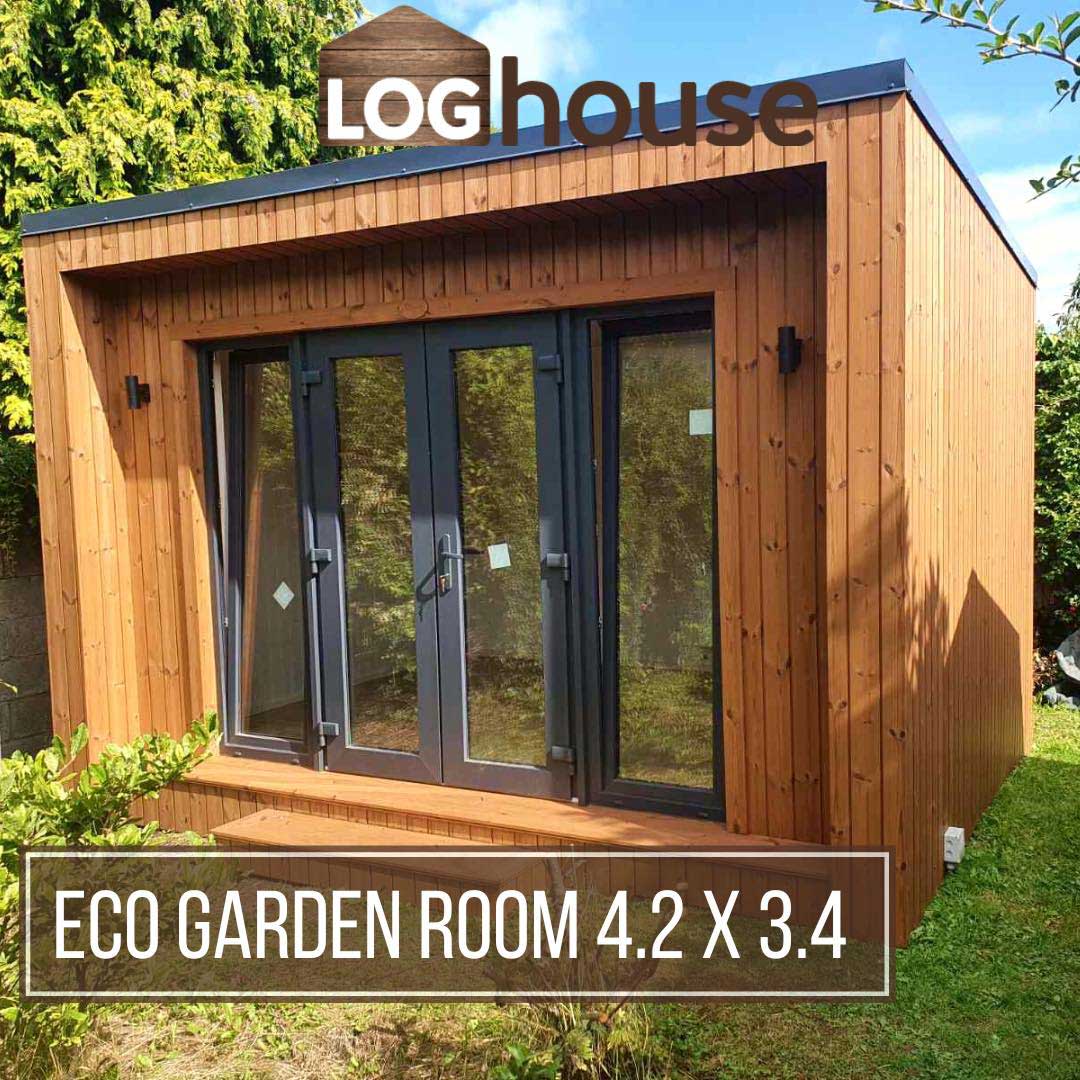

Difference between SIPs and timber frame - Loghouse-Garden-Room-built-with-SIPs

Difference between SIPs and timber frame – What are the advantages and disadvantages of SIPs?

There are many benefits to using SIPs in construction, but timber frames also possess qualities that make them ideal for many uses. Here are some key differences between SIPs and timber frames:

Strength: SIPs are often much stronger than timber frames. This is due to how they’re constructed, with the foam insulation providing extra support. Timber frames are strong, but SIPs panels can be stronger.

Energy efficiency: SIPs panels deliver exceptional thermal performance. This means that they can help to keep your garden room log cabin warm in winter and cool in summer, leading to lower energy bills. Timber frames provide natural insulation and breathability but can be outperformed by SIPs panels.

Construction time: SIPs panels are prefabricated, which means they can be assembled quickly on-site. This can lead to shorter construction times and reduced labour costs. Timber frames usually require putting together piece by piece, which can require longer construction times.

Cost: SIPs panels can be more expensive than timber frames. This is due to the added cost of the foam insulation and the fact that SIPs panels are usually prefabricated. Timber frames are typically less expensive, but when building a log cabin, the final cost will depend on several factors, including the size and style of the building being constructed.

Durability: One of the biggest advantages of timber frame construction is that it is very durable and stands the test of time if the building is looked after. Timber frames can last for centuries if properly maintained, whereas SIPs have an estimated lifespan of around 60 years. However, some of the earliest buildings created with SIPs construction methods are still standing after nearly a century. As they are a much newer construction material than timber, time will tell their true lifespan.

Environmentally friendly: When timber frames are built from sustainable sources, they are extremely environmentally friendly. SIPs panels are also generally considered environmentally friendly as they may use less energy while being manufactured, and their use can contribute to lower CO2 levels due to their high energy efficiency properties.

Contact-Loghouse-Log-Cabins-and-Garden-Rooms

What are the benefits of timber frame?

Timber frame is a very popular construction method in buildings around the world. This is because it offers some advantages, including:

Aesthetics: Timber frames can provide a traditional or rustic look to a building. They can also be used to create modern and contemporary designs.

Flexibility: Timber frames are very versatile and can be adapted to suit the specific needs of a project.

Sustainability: When timber frame is built from sustainable sources, it is an environmentally friendly construction method.

Cost: Timber frame is typically less expensive than other construction methods.

However, there are a few disadvantages to consider before opting for timber frame construction, including vulnerability to moisture. If timber frames are not properly treated and protected from the elements, they can rot or become infested with pests.

Timber frames also require regular maintenance to prevent damage from the elements.

There are many differences between SIPs and timber frame construction, but ultimately it comes down to what you need from your building. SIPs panels are stronger and more energy efficient, but they come at a higher cost. Timber frames are less expensive and can last for centuries if properly maintained, but they don’t provide the same level of insulation or strength. Ultimately, it’s up to you to decide which construction method is right for your garden room.

What is the purpose of SIPs?

The main purpose of SIPs is to provide a high level of thermal performance. They can help to keep your garden room at a suitable temperature, no matter the time of year.

SIP house construction can also result in a more energy-efficient building. This is because SIPs panels are airtight, which reduces the amount of heat that can escape from the building. This can lead to lower energy bills and a smaller carbon footprint.

SIPs panels can also be used to create very strong and durable buildings. The foam insulation provides additional support, making SIPs construction ideal for structures that need to be particularly strong.

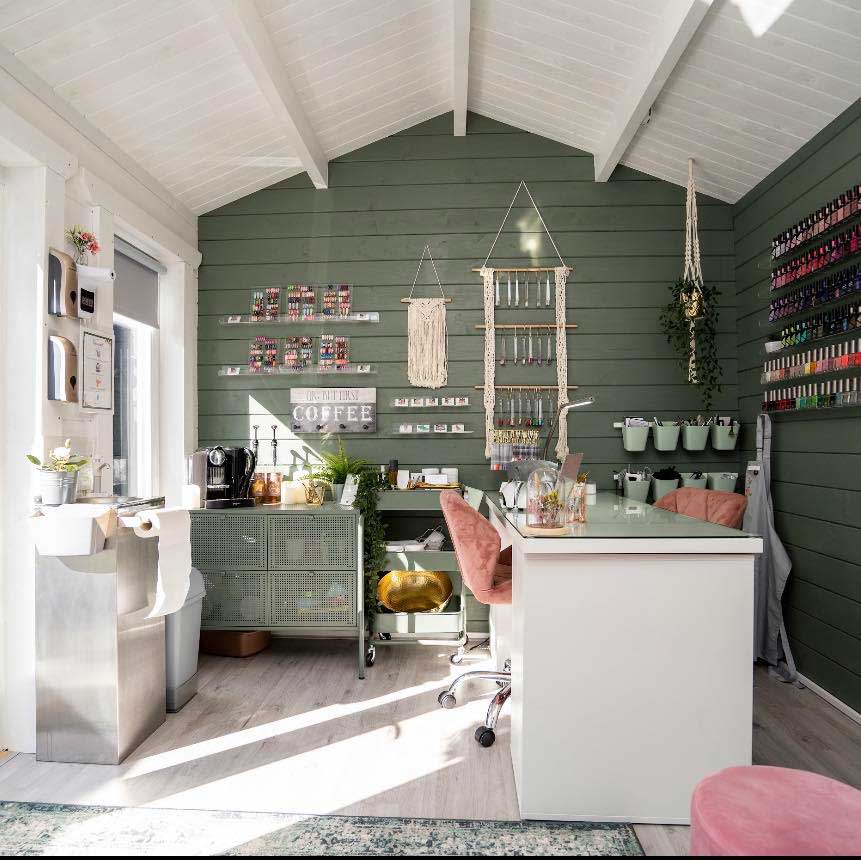

Difference between SIPs and timber frame - Should-I-Choose-SIPs-or-Timber-Frames-for-Self-Build

Can SIPs be load-bearing?

SIPs panels are often used in load-bearing applications, and they can support the weight of the roof, walls, and floors of your garden room.

Do SIPs need studs?

No, SIPs panels do not need studs. The foam insulation within the panel provides support, so there is no need for additional framing.

Difference between SIPs and timber frame – Are SIPs cheaper than stick framing?

Is building with SIPs cheaper? Not necessarily. For the construction process, SIPs panels are typically more expensive than stick framing. This is due to the added cost of the foam insulation and the fact that SIPs panels are usually prefabricated.

With stick framing, timber is cut to size either before delivery or often on-site. This makes the construction cost lower as timber is simply a cheaper product. However, in the long-term, the differences between SIPs and timber frame construction (such as log cabins) are clearer – the added energy efficiency of SIPs can reduce the lifetime cost of the building, which makes SIPs panels a more economical investment.

Contact-Loghouse-Log-Cabins-and-Garden-Rooms

Difference between SIPs and timber frame – Should I Choose SIPs or Timber Frames for Self-Build?

Which one should you choose? The answer really depends on your project and your budget. Timber frame construction might be the way to go if you’re looking for a quick and easy solution. However, if you’re looking for something that is more environmentally friendly, sustainable, and flexible, then SIPs might be the better option.
